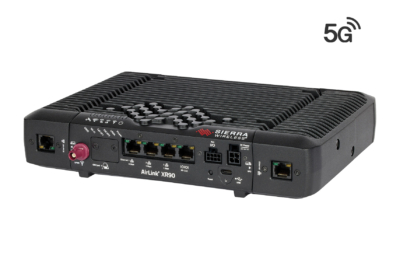

Semtech AirLink®

XR90

Highest-Performance Multi-Network 5G/WiFi 6 Router for Vehicle, Transit, Rail, and First Responder Fleets

The supercharged AirLink® XR90 is purpose-built for public safety and transit with available dual-5G cellular radios and dual independent 4×4 MIMO Wi-Fi 6 antennas. The Semtech AirLink® XR90 is the highest-performing, most flexible router in the Semtech portfolio. The AirLink® XR90 supports complete device-to-cloud security, reduces your total cost of ownership with ALMS Out-of-Band management, and with the cartridge-based design, enables long-term expandability and upgradability.

The industry’s highest-performing 5G router, purpose-built for vehicles
Future-proof, cartridge-based design for additional functions and features
5 Ethernet ports and dual 4X4 MIMO Wi-Fi 6
Remote device management and mobility-focused reporting through AirLink® Premium

Compatible with the following antennas:

9-in-1 Dual SharkFin
5-in-1 Dual SharkFin
9-in-1 Dome
5-in-1 Dome
5-in-1 Flat Panel
4-in-1 Wi-Fi

Semtech AirLink® XR90 – A Fully Integrated Solution
The AirLink® XR90 is a fully supported, out-of-the-box solution complete with integrated device management, advanced mobility reporting, and 24/7 technical support. AirLink® Connection Manager delivers complete VPN security and our AirLink® Professional Services maximizes your system performance and customer satisfaction.

Ideal Applications for AirLink® XR90
Mobile mission-critical applications in public safety, transit, and field services. Delivers secure always-on Vehicle Area Networks (VANS) for:

Buses/Transit
Ambulance/EMS
Law Enforcement
Fire
Utilities
Private Networking

AirLink® XR90 Benefits

Designed for rugged mobile applications with Mil-Standard aluminum die-cast housing and adaptive power management
Real-time connectivity with unmatched uplink and downlink speeds using Data Path Accelerated 5G, Wi-Fi 6, and 5Gbps Ethernet technology
“Always-on” connectivity using available dual cellular and dual Wi-Fi radios, and automatic failover using AirLink Cognitive Wireless
Simplified setup and usability with new AirLink® OS and upgraded AirLink® Management Service (ALMS)
New AirLink® Premium with ALMS Out-of-Band Management provides zero-touch setup and reduced service calls
Ready for your Edge computing workloads

Browse all Semtech Gateways and Routers available from GetWireless that fit many areas of Internet of Things solutions for any application.

Semtech AirLink®

XR80

High-Performance Multi-Network 5G/WiFi Router for Public Safety, Field Service Fleets, and Mission-Critical Fixed Applications.

The supercharged Semtech AirLink® XR80 is optimized for fixed and mobile applications. The available dual-5G cellular radio and 5X4 MIMO Wi-Fi 6 delivers flexibility for customized configurations. The AirLink® XR80 supports complete device-to-cloud security, reduces your total cost of ownership with ALMS Out-of-Band management, and with the cartridge-based design, enables long-term expandability and upgradability.

Single-radio 5G router for fixed applications
Easily expand to dual radios and to add more functionality with the cartridge-based design
4 ethernet ports and 5×4 MIMO Wi-Fi 6
Remote device management through AirLink® Complete

Compatible with the following antennas:

10-in-1 Dual SharkFin
5-in-1 Dual SharkFin
10-in-1 Dome
5-in-1 Dome
5-in-1 Flat Panel

Semtech AirLink® XR80 – A Fully Integrated Solution
The Semtech AirLink® XR80 is a fully supported, out-of-the-box solution complete with integrated device management and 24/7 technical support. AirLink® Connection Manager delivers complete VPN security and our AirLink® Professional Services maximizes your system performance and customer satisfaction.

Ideal Applications for AirLink® XR80
Mobile mission-critical applications in public safety and field service fleets, Fixed Wireless Access, SCADA, Edge, and industrial IoT.

Ambulance/EMS
Law Enforcement
Utility Bucket Trucks
Commercial Fleets
Manufacturing
Fixed Utility Applications
Pipeline monitoring
Remote Learning
Retail, Digital Signage, and Security

AirLink® XR80 Benefits

Designed for fixed and mobile mission and business-critical applications that require ultimate connectivity and reliability
Real-time connectivity with unmatched uplink and downlink speeds using 5G, Wi-Fi 6 and 5Gbps Ethernet technology
“Always-on” connectivity delivers consistent primary and backup connectivity for public and private networks using AirLink® Cognitive Wireless
Simplified setup and useability with new AirLink OS and upgraded AirLink® Management Service (ALMS)
New AirLink® Premium with ALMS Out-of-Band Management provides zero-touch setup and reduced service calls
Ready for your Edge computing workloads

Browse all Semtech AirLink® Routers and Gateways available from GetWireless that fit many areas of Internet of Things solutions for any application.

Semtech AirLink®

RX55

World’s Most Power-Efficient Rugged 4G LTE-A Router

The AirLink® RX55 is optimized for Industrial IoT with ultra-low power consumption and a rugged design for extreme conditions. With advanced networking and industry-standard container support capabilities, the RX55 delivers intelligence securely at the edge for mission-critical applications on both public and private networks.

Key Features:

4G LTE-A
Dual 1×1 Wi-Fi 5
1 Gigabit Ethernet
Single/Dual Serial

GNSS
IP64 Rated
AirLink OS with AirLink Complete

Benefits:

Compact size makes installation easier
Ultra-low power consumption makes it ideal for solar or battery-powered applications
Connect to a wide variety of devices, from video to low-power IoT
Remote device management through AirLink Complete
Ready for your edge computing workloads (Wi-Fi Plus model – early adopters)

Compatible with the following antennas:

5-in-1 Dome
5-in-1 Panel
4-in-1 BAT
3-in-1 BAT
3-in-1 Panel

Browse all Semtech Gateways and Routers available from GetWireless that fit many areas of Internet of Things solutions for any application.

Request a Quote

Semtech AirLink®

MP70

Semtech AirLink® MP70 High-Performance LTE Vehicle Router. Vehicle Grade, LTE-Advanced, Gigabit Wi-Fi . The Semtech AirLink® MP70 is a high-performance, LTE-Advanced Pro vehicle router developed specifically for mobile mission-critical applications in public safety, transit, and field services.

Offering high power, long-range Gigabit Wi-Fi and Gigabit Ethernet, and up to 600 Mbps downlink and 150 Mbps speeds over LTE-Advanced Pro, the Semtech AirLink® MP70 unites the fleet with the enterprise network and enables multiple field applications to work simultaneously, further and faster from the vehicle than ever before. The MP70 is a certified device that is Band 14 and FirstNet Ready™.

Offers high-performance vehicle area network (VAN)
Provides connected vehicle awareness
Purpose-built for vehicles
Provides secure intelligent communications
Network management in the cloud or in the enterprise data center
Includes the first year of network management and support with AirLink® Complete
FirstNet Ready™

FirstNet and FirstNet Ready are registered trademarks and service marks of the First Responder Network Authority, an independent authority within the U.S. Department of Commerce.

Compatible with the following antennas:

6-in-1 Dome
6-in-1 SharkFin
3-in-1 SharkFin
3-in-1 BAT
3-in-1 Wi-Fi
3-in-1 SharkFin Wi-Fi
3-in-1 Panel
Paddle 5G
Paddle 3G/4G
Paddle Wi-Fi/Bluetooth

Secure, managed LTE networking for mission-critical applications

Sierra Wireless AirLink MP70

Semtech AirLink® MP70 Benefits

High-Performance Vehicle Area Network (VAN)

With dual-band Gigabit Wi-Fi and Gigabit Ethernet, the AirLink® MP70 enables a complete portfolio of broadband mission-critical applications to work simultaneously, further and faster from the vehicle than ever before.

Built for first responders and field personnel, the Sierra MP70 offers up to 600 Mbps downlink speeds and upload speeds of 150 Mbps over LTE-Advanced with fallback to 3G networks, and up to 1.3 Gbps over 802.11ac Wi-Fi (with 3×3 MIMO) and Gigabit 4-port Ethernet. The AirLink® MP70 can host up to 128 simultaneous Wi-Fi clients, and concurrently connect multiple mission-critical applications in and around the vehicle including laptops, DVRs, and tablets, in addition to providing live video streaming, and rapid and secure access to remote databases, such as record management systems.

MP70 Provides Connected Vehicle Awareness

The AirLink® MP70 increases efficiency, streamlines operations, and reduces costs by supporting advanced remote visibility and instant insight into the vehicle area network (VAN), field applications and assets, and the workforce.

Utilizing next-generation GNSS location technology that supports 48 satellites from 4 different satellite constellations (GPS, GLONASS, Galileo, Beidou) with inertial navigation (dead reckoning). The AirLink® MP70 provides fast, reliable, and precise vehicle location, even in the most challenging environments, including urban canyons and tunnels or covered structures.

AirLink® MP70 Is Purpose-Built for Vehicles

The AirLink® MP70 provides superior reliability and continuous operation in harsh environments. It will survive extreme transient surges and maintain continuous power during 5V brownouts and spikes from -600 VDC to 200 VDC.

Secure, Intelligent Communications

Offering up to 5 concurrent VPN sessions, the AirLink® MP70 enables secure communications to multiple back-end systems and provides remote authentication management to allow the implementation of enterprise-grade systems to control access to devices in the field.

AirLink® MP70 LTE Router now supports Integrated Vehicle Telemetry.

Secure, Managed LTE Networking for mission-critical applications
Monitor all critical vehicle data and manage the entire fleet through a single management interface
Get proactive notification of vehicle-related issues
Identify performance issues and prevent breakdowns
Monitor driver behavior to lower accident risk and lower operating costs

See how the AirLink® MP70 with built-in Inertial Navigation (Dead Reckoning) technology can provide precise, continuous location tracking of your mobile assets, even in urban canyons and underground garages where satellites cannot be seen:

Watch video

Browse all Semtech Gateways and Routers available from GetWireless that fit many areas of Internet of Things solutions for any application.

Request a Quote

Semtech AirLink®

LX40

The Semtech AirLink® LX40 is our most compact LTE and LTE-M / NB-IoT router for IoT/M2M applications. The Semtech AirLink® LX40 provides “out-of-the box”, secure, managed LTE networking for IoT and enterprise applications such as IP Cameras, Security, Point-of-Sale terminals, and Smart Lockers. AirLink® LX40 is also ideally suited for connecting industrial, remote data logging and sensing equipment in protected (indoor) locations, and supports processing of IoT data at the edge. The AirLink® LX40 is also available with Wi-Fi, to act as a local hotspot or connect to wi-fi infrastructure.

The Semtech AirLink® LX40 is designed to meet the environmental and performance requirements of a diverse range of IoT applications in indoor or protected outdoor locations.

The most compact LTE router in its class supporting 150Mbps/50Mbps (DL/UL)
Power-over-Ethernet— Powered Device capability, ideal for fixed low-power applications
Supports edge processing and IoT applications with ALEOS Application Framework (AAF)
LTE and LTE-M/NB-IoT variants for global deployments
Remote, secure network management in the cloud or in the enterprise
Network management and support with AirLink® Complete
FirstNet Ready™

Compatible with the following antennas:

4-in-1 BAT
4-in-1 Panel
2-in-1 Panel
Paddle 3G/4G
Paddle Wi-Fi/Bluetooth

Sierra Wireless AirLink LX40

Semtech AirLink® LX40 Benefits

Achieve Compact, Secure, Managed Connectivity With AirLink® LX40

The LX40 delivers LTE connectivity for business-critical or IoT/M2M applications. Securely and reliably connect your equipment or people with an “out-of-the box” solution in an extremely compact form factor. LX40 supports LTE speeds (up to 150 Mbps), and for low-bandwidth IoT deployments, the LX40 provides Global LTE-M/NB-IoT (up to 300 Kbps) coverage.

AirLink® LX40 Offers A Compact, Flexible Form Factor

The LX40 is the industry’s most compact LTE router in its performance class, supporting download speeds of up to 150Mbps (DL) with a built-in robust, industrial-grade power supply. Low-power consumption and Power-over-Ethernet support provides flexibility and simplifies installation costs.

IoT Ready – Intelligent Edge Processing

Easily connect your equipment and process IoT data. The LX40 provides intelligent edge processing with ALEOS application framework (AAF). Rapidly develop and deploy AAF applications to pre-process or filter data collected at the edge from machines, equipment, or sensors.

Browse all Semtech Gateways and Routers available from GetWireless that fit many areas of Internet of Things solutions for any application.

Request a Quote

Semtech AirLink®

XR90

Highest-Performance Multi-Network 5G/WiFi 6 Router for Vehicle, Transit, Rail, and First Responder Fleets

RV55
