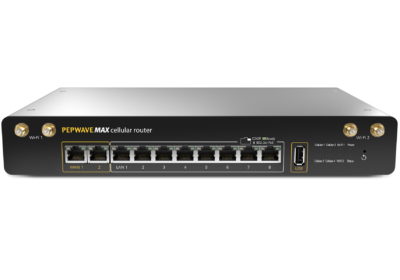

MAX HD4
Peplink

MAX HD4

The MAX HD4 delivers outstanding performance from all your connections with the help of SpeedFusion Bandwidth Bonding and intelligent load balancing. Each Cellular Modem has Redundant SIM slots allowing you to use up to four different cellular providers plus, a built-in 8-port GE switch to reduce clutter in your mobile deployments.

  • SpeedFusion Technology: Hot Failover, WAN Smoothing, Bandwidth Bonding
  • 8x (GE) Ethernet LAN Ports
  • 2x (GE) WAN ports
  • Cellular Modem LTE / LTEA / LTEA Pro
  • Wi-Fi WAN
  • 400Mbps Throughput
  • PoE Output
  • Multiple Power Input Options
  • GPS Tracking
  • InControl2
  • 5G Ready
  • FirstNet (Band 14)

MAX HD4 Diagram


Use Cases

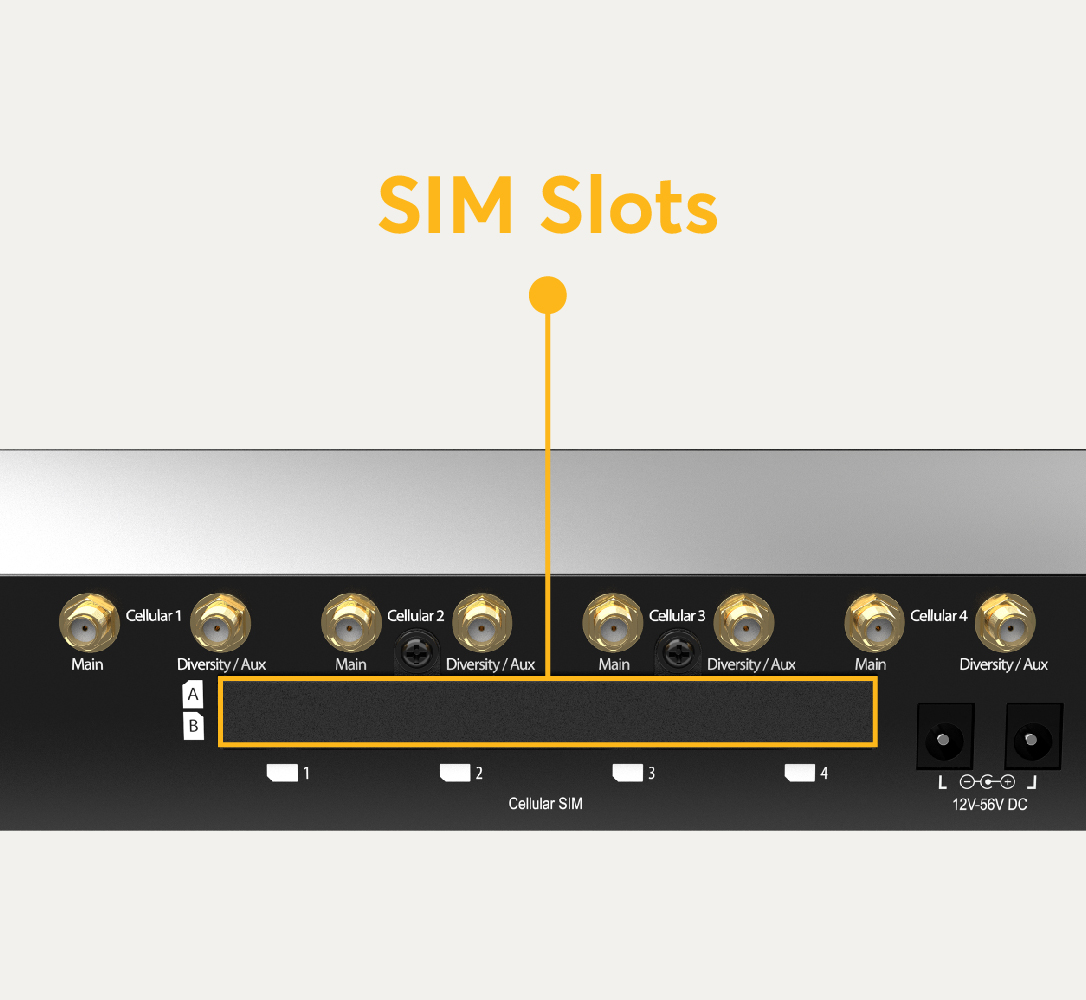

Quad Embedded Cellular Modems

Quad Cellular Modems and Redundant SIM slots allow you to use up to four different cellular providers for bandwidth bonding, data overage protection, or eliminating blind spots.


Terminal Block for Secure Power Supply

The MAX HD4 is equipped with a terminal block for secure installation in vehicles and other locations.


8-Port GE Switch and Optional PoE Output

Cut down on cabling and simplify deployments. With a PoE activation kit purchase, the HD4 supports 802.3at PoE Output, so one cable is all you need for both connectivity and power.


Certified Toughness

In addition to rugged metal enclosure, the MAX HD4 is certified on:

  • Shock and vibration resistance (EN 61373:1999 IEC 61373:1999)
  • Railway Applications (EN 50155)
  • Electromagnetic Compatibility (EN 61000)



Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device. InControl 2 is our cloud-based device management, monitoring, and reporting tool designed specifically for Peplink and Pepwave devices.


Explore the MAX HD Series

MAX HD2 Mini

MAX HD2 Mini
Compact Dual 4G LTE Mobile Router

MAX HD2

MAX HD2
Dual 4G LTE Mobile Router

MAX HD2 Dome

MAX HD2 Dome
Dual Cellular Router for Mobile Outdoor Deployments

MAX HD4 MBX

MAX HD4 MBX
Quad Cellular Gigabit LTE Mobile Powerhouse

MAX BR1 ENT
Peplink

MAX BR1 ENT

The MAX BR1 ENT is an Enterprise Grade Router with LTE Failover that delivers blazing 300Mbps throughput with automatic failover to LTE and comes without Wi-Fi, making it an ideal choice for deployments that demand high performance, and outstanding reliability.

  • SpeedFusion Technology: Hot Failover, WAN Smoothing
  • 2x (GE) Ethernet LAN Ports
  • 1x (GE) WAN port
  • Cellular Modem LTE / LTEA
  • Redundant SIM Slots
  • Wi-Fi WAN
  • 300Mbps Throughput
  • PoE Output
  • Multiple Power Input Options
  • InControl2
  • FirstNet (Band 14)

MAX BR1 ENT Diagram

Redundant SIM Slots for Multiple Carriers

Redundant SIM slots with automatic switching for reliable network. You can also set the MAX BR1 to automatically switch SIM cards when you’re in danger of exceeding a data cap. It also allows you to travel across borders without changing SIM cards manually.


Use Cases

MAX BR1 ENT Use Cases


Topologies

MAX BR1 ENT Topology MAX BR1 ENT Topologies


Meet Strict Security Compliance
Got a strict no-Wi-Fi security policy? Built without Wi-Fi, the BR1 ENT is a great choice for deployments with compliance requirements.

Terminal Block for Secure Power Supply
The MAX BR1 ENT is equipped with a terminal block for secure power installation.

HighSpeed Primary Line with LTE Backup
In case of a WAN failure, SpeedFusion Hot Failover technology powers the MAX BR1 ENT for instant failover between wired and cellular links as needed to keep your connection stable and fast.

PoE Output Option Available
Cut down on cabling and simplify deployments. With an optional PoE activation kit, the BR1 ENT supports 802.3af PoE Output, so one cable is all you need for both connectivity and power.


Explore the MAX BR1 Series

MAX BR1 Mini Core
Best Value in Industrial Grade Connectivity

BR1 mini

MAX BR1 Mini
Best Value in Industrial Grade Connectivity

BR1 Classic

MAX BR1 Classic
The Original BR

MAX HD2
Peplink

MAX HD2

The MAX HD2 gives you blazing-fast connectivity on the road with dual embedded cellular modems and SpeedFusion bandwidth bonding, plus a built-in 4-port GE switch to reduce clutter in your mobile deployments.

  • SpeedFusion Technology: Hot Failover, WAN Smoothing, Bandwidth Bonding
  • 4 (GE) Ethernet LAN Ports / 2(GE) WAN port
  • Cellular Modem LTE / LTEA / LTEA Pro
  • Wi-Fi WAN
  • 400Mbps Throughput
  • PoE Output with Optional PoE Activation Kit
  • Multiple Power Input Options
  • GPS Tracking
  • InControl2
  • FirstNet (Band 14)

Use Cases



Simplify your Deployments

Cut down on cabling and simplify your deployments with MAX HD2. The HD2 includes a built-in 4-port GE LAN switch, reducing clutter and the need for extra equipment. As well as a terminal block for secure power installation in vehicles and other locations.


Dual Cellular for Multiple Carriers

MAX HD2 has two embedded cellular modems and dual SIM slots that allows you to use the same or different cellular providers for bandwidth bonding or for eliminating blind spots.


Certified Toughness

In addition to rugged metal enclosure, the MAX HD2 is certified on:

  • Shock and vibration resistance (EN 61373:1999 IEC 61373:1999)
  • RF Port Lightning Immunity (ITU-T K.20 (+/- 1.5 kV))
  • Railway Applications (EN 50155)
  • Electromagnetic Compatibility (EN 61000)



Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device. InControl 2 is our cloud-based device management, monitoring, and reporting tool designed specifically for Peplink and Pepwave devices.

VISIT INCONTROL 2 PAGE


Explore the MAX HD Series

MAX HD2 Mini

MAX HD2 Mini
Compact Dual 4G LTE Mobile Router

MAX HD2 Dome

MAX HD2 Dome
Dual Cellular Router for Mobile Outdoor Deployments

MAX HD4

MAX HD4
Quad 4G LTE Mobile Router

MAX HD4 MBX

MAX HD4 MBX
Quad Cellular Gigabit LTE Mobile Powerhouse

MAX Transit/MAX Transit DUO
Peplink

MAX Transit/MAX Transit DUO

The Peplink MAX Transit is available in both single cellular and dual cellular radio options. Both devices come with redundant SIM slots, allowing you to use multiple carriers. The MAX Transit and Transit Duo mobile routers are capable of Peplink’s SpeedFusion seamless Hot Failover, WAN Smoothing, and Bandwidth Bonding. Other features include captive portal, fleet tracking, advertising services, and Wi-Fi mesh support. The Peplink MAX Transit series of mobile routers are ideal for public safety users, on-board public transportation, and in-vehicle fleet tracking.

  • SpeedFusion Technology: Hot Failover, WAN Smoothing, Bandwidth Bonding
  • 1 (GE) Ethernet LAN Ports
  • 1 Ethernet WAN Port
  • 1 Cellular Modem LTEA / LTEA Pro / GLTE / 2 Cellular Modems LTE / LTEA Pro
  • Redundant SIM Slots
  • Wi-Fi WAN
  • 400Mbps Throughput
  • Multiple Power Input Options
  • Ignition Sensing
  • GPS Tracking
  • Designed for Mobility
  • Captive Portal with Social Wi-Fi
  • InControl2
  • FirstNet Ready™

Primecare info: *Available with PrimeCare Subscription, complimentary for the first year.

FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity. The MAX Transit supports band 14, providing additional coverage as the situation demands.


MAX Transit Diagram

Transit CAT18 Diagram


Explore the MAX Transit Series

MAX Transit Mini

MAX Transit Mini
Built for Transportation Deployments

Transit 5G

MAX Transit 5G
5G Mobile Router for Transportation Deployments

MAX Transit Mini
Peplink

MAX Transit Mini

The Peplink MAX Transit Mini supports both band 71 and FirstNet, providing additional coverage as the situation demands. Band 71 operates at a 600MHz frequency that travels twice as far and works four times better in buildings than conventional LTE bands. FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity.

The MAX Transit Mini has specialized features for vehicular deployments. Ignition sensing, which detects the ignition status of the vehicle, enables the device to turn on and off as the vehicle starts up and shuts down. It is also equipped with GPS, enabling you to track its movements. With InControl’s fleet management, you can review the route history of all your vehicles from any web browser.

  • SpeedFusion Technology: Hot Failover* and WAN Smoothing*
  • 3x 10/100M Ethernet LAN Ports
  • 1x 10/100M Ethernet WAN port
  • Cellular Modem LTE
  • Redundant SIM Slots
  • Wi-Fi WAN
  • 100Mbps Throughput
  • Multiple Power Input Options
  • Ignition sensing
  • GPS tracking
  • Designed for Mobility
  • InControl2
  • FirstNet Ready™ (Band 14)

Primecare Info: *Available with PrimeCare Subscription, complimentary for the first year.

Peplink MAX Transit Mini Diagram


Use Cases

MAX Transit Mini Use Cases

Topology, First Responder Connectivity to HQ

MAX Transit Mini Topology


Explore the MAX Transit Series

MAX Transit/ MAX Transit Duo

MAX Transit / MAX Transit Duo
Built for Transportation Deployments

Transit 5G

MAX Transit 5G
5G Mobile Router for Transportation Deployments

MAX HD4 MBX
Peplink

MAX HD4 MBX

The MAX HD4 MBX is capable of combining the bandwidth of 4 cellular links into an unbreakable, high-speed SD-WAN connection. The MAX HD4 MBX supports up to 8 SIM cards, with room for another 8 with the optional SIM Injector. With up to 16 cellular providers to connect to, spotty coverage will simply not be a problem.

  • SpeedFusion Technology: Hot Failover, Bandwidth Bonding, WAN Smoothing
  • 9x (GE) Ethernet LAN Ports
  • 3x (GE) WAN ports
  • Cellular Modem LTE / LTEA / LTEA Pro / GLTE
  • Wi-Fi WAN
  • 2.5 Gbps Throughput
  • PoE Output
  • Multiple Power Input Options
  • Ignition Sensing
  • 5G Ready
  • InControl2
  • FirstNet (Band 14)

Use Cases

The HD4 MBX fits in a variety of scenarios:


Ready for Any Environment

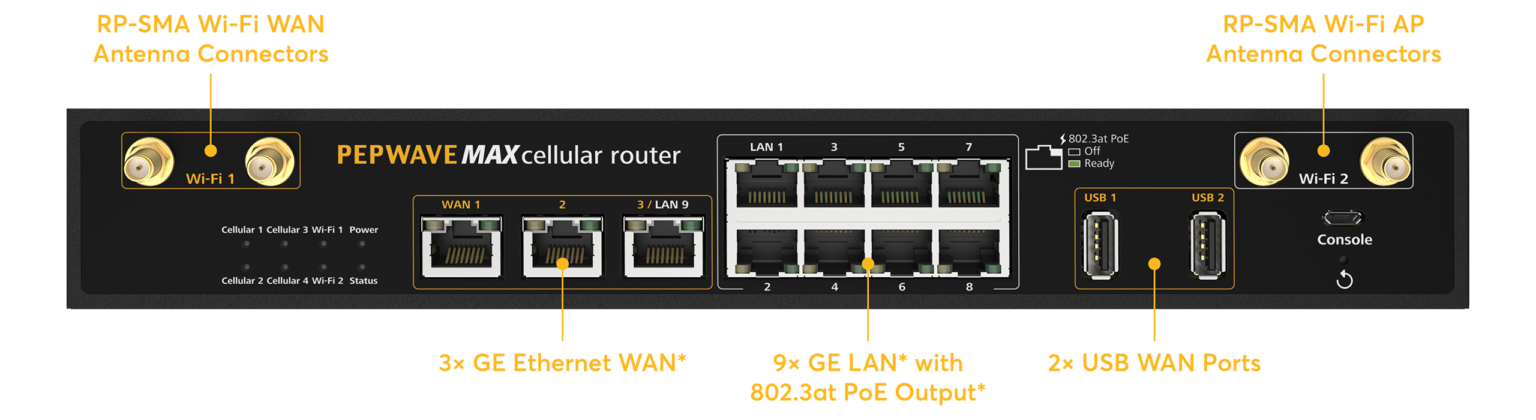

MAX HD4 MBX Diagram

Fanless Design

Thrives in high-particle environments that would break other fan-based routers.

8×802.3at PoE Outputs

Power your IP phones, cameras, and access points.

Robust Metal Enclosure

Same dimensions as the previous HD4, so it can fit seamlessly into any of your previous deployments.


Ideal for On-The-Go Deployments

Ignition Sensing gives it the ability to turn on and off depending on whether the vehicle has started. Upon vehicle shutdown, the MBX can also shut down after a user-defined interval, saving the battery from excessive drain.

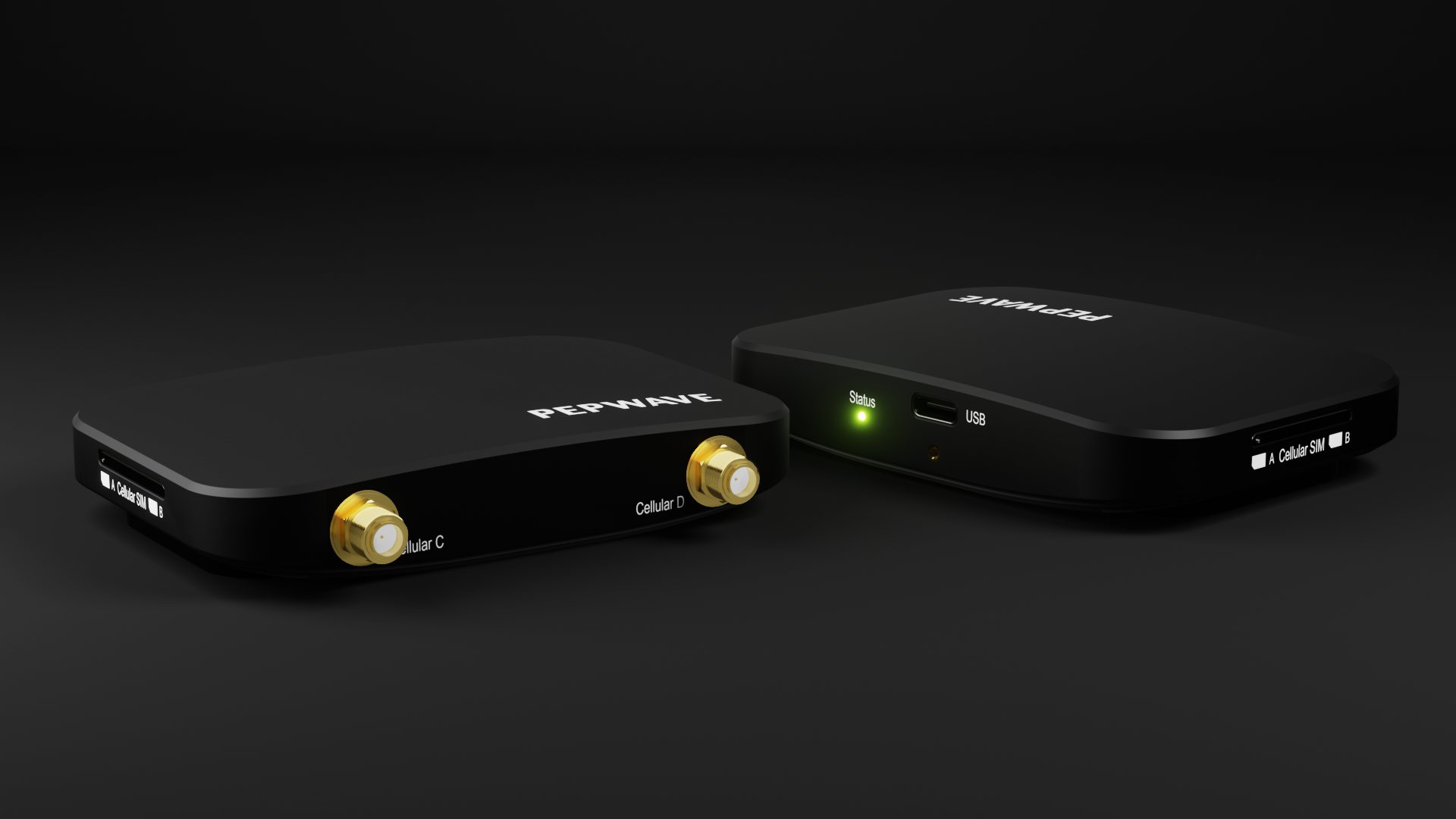

The HD4 MBX also supports the optional SIM Injector, which adds another 8 cellular providers to connect with. This mitigates weak spots in cellular coverage, ensuring consistent connectivity. If your deployment crosses national boundaries, you can also use the SIM Injector to load multiple SIM cards, preventing roaming charges.


Future Proof Design. Ready for 5G

Right out of the box, the HD4 MBX supports Gigabit LTE. For future technologies, the MBX features a swappable cellular module, so when you need to upgrade to 5G, you can simply swap your old one with a new one. The MBX is also capable of 2.5Gbps of throughput, giving you plenty of bandwidth for Gigabit Ethernet, 5G, or any future mobile technologies.


Explore the MAX HD Series

MAX HD2 Mini

MAX HD2 Mini
Compact Dual 4G LTE Mobile Router

MAX HD2

MAX HD2
Dual 4G LTE Mobile Router

MAX HD2 Dome

MAX HD2 Dome
Dual Cellular Router for Mobile Outdoor Deployments

MAX HD4 MBX

MAX HD4
Quad 4G LTE Mobile Router

Balance SDX
Peplink

Balance SDX

As a member of our “X” series, the SDX offers extreme performance and futureproof design at a practical price point. With 12 Gbps of throughput, the SDX can handle the bandwidth requirements of any enterprise branch network. The SDX also supports a FlexModule*, enabling you to customize the router with your choice of ports, as well as instantly apply new technology as we release new modules.

The SDX has a slot for a FlexModule, which is available in three versions:

  • 3x cellular WAN: Combine cellular links for wireless SD-WAN backup to the primary connection. 5G FlexModule coming soon!
  • 8x copper WAN/LAN: Connect PoE-enabled modems on the WAN, or connect PoE devices such as cameras, IP phones, and Wi-Fi APs on the LAN.
  • 4x fiber WAN/LAN: Build an all-Fiber network by connecting Fiber WANs and LAN Switches.

We will build additional FlexModules as new technologies such as 5G emerge. Simply insert the new FlexModule and the SDX will become 5G ready; no need to purchase a new router.

Even without a FlexModule, the SDX is already prepared for any enterprise branch deployment. It comes equipped with 2x Ethernet WAN, 2x Gigabit Fiber WAN, and 2x USB WAN, enabling connectivity from multiple sources. The 8x integrated LAN ports can also power devices via PoE+. These integrated ports provide a baseline level of connectivity on which users can add FlexModules to increase the capabilities of the SDX. This is also useful for scaling deployments where growth is anticipated.

  • SpeedFusion Technology: Hot Failover, WAN Smoothing, Bandwidth Bonding
  • 8x (GE) LAN Ports
  • 2x (GE) WAN ports
  • 2x USB ports
  • 2x 10G SPF+ ports
  • Cellular Modem LTE / LTEA / LTEA Pro / GLTE
  • Modular configuration for future proof design with FlexModule
  • Wi-Fi WAN
  • 12 Gbps Throughput
  • PoE Output
  • 5G Ready
  • InControl2
  • FirstNet (Band 14)

Modular System. Ensure Flexibility


3x cellular WAN

Combine cellular links for wireless SD-WAN backup to the primary connection. 5G FlexModule coming soon!

8x copper WAN/LAN

Connect PoE-enabled modems on the WAN, or connect PoE devices such as cameras, IP phones, and Wi-Fi APs on the LAN.

4x fiber WAN/LAN

Build an all-Fiber network by connecting Fiber WANs and LAN Switches.
